YXC Yangxing Technology's Spread Spectrum Crystal Oscillators Help Medical Devices Overcome EMC Challenges

     As smart medical devices evolve toward higher precision and miniaturization, electromagnetic interference (EMI) has become a persistent nightmare for R&D engineers. Especially in the fields of imaging diagnostics and biochemical analysis, even minor electromagnetic noise can directly lead to diagnostic errors.

　　YXC Technology's YSO171PS series of programmable spread-spectrum oscillators (SSXOs), leveraging proprietary frequency modulation technology, tackles EMI challenges at the source, providing rock-solid timing support for intelligent diagnostic and therapeutic equipment.

　　1. Core Technology: Why Are Spread-Spectrum Crystal Oscillators (SSXOs) the "Nemesis" of EMI?
　　Traditional crystal oscillators concentrate energy within an extremely narrow frequency band, easily generating high peaks of electromagnetic radiation.
　　YXC Technology’s YSO171PS series spread-spectrum oscillators utilize unique spread-spectrum modulation technology to evenly distribute concentrated energy across a broader frequency band, significantly reducing energy density at harmonic frequencies without compromising system clock accuracy.

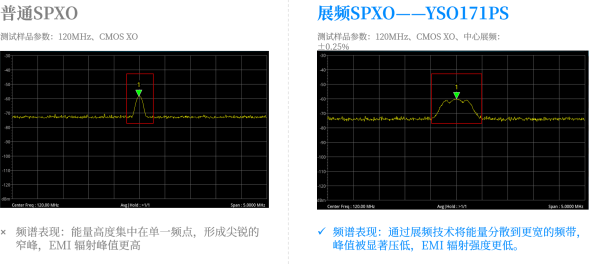

　　Figure: Spectrum Comparison Between Standard SPXO and Spread-Spectrum SPXO

　　This "peak-reduction and valley-filling" approach enables medical devices to easily comply with stringent electromagnetic compatibility (EMC) standards for medical equipment (such as IEC 60601-1-2), significantly shortening time-to-market.
　　2. Key Specifications of YXC’s Programmable Spread-Spectrum Oscillator YSO171PS Series

　　Figure: YXC Programmable Spread-Spectrum Oscillator YSO171PS Series

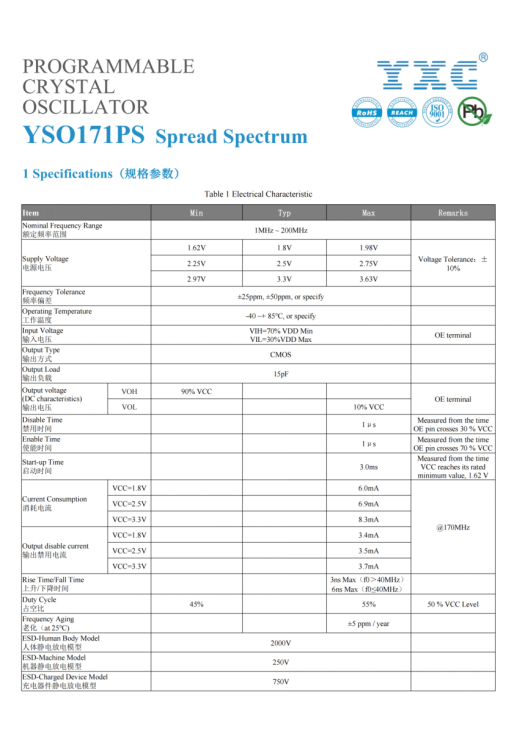

　　Key Parameters of the YSO171PS Series:
　　Frequency Range: 1–200 MHz; utilizes PLL technology, offering customizable frequencies and rapid sample delivery
　　Package Dimensions: Available in 2.5×2.0 mm and 3.2×2.5 mm packages—compact sizes ideally suited for tight PCB layouts in portable medical devices
　　Supply Voltage: 1.8 V / 2.5 V / 3.3 V
　　Output Type: CMOS
　　Operating Temperature: –40°C to +85°C (or as specified); extended wide-temperature options up to –40°C to +125°C available
　　Total Frequency Stability: ±25 ppm / ±50 ppm
　　Low Power Consumption: As low as 3.4 mA
　　Spread-Spectrum Modes: Supports center-spread and down-spread modes
　　Center-Spread Modulation Depths: ±0.25%, ±0.5%, ±0.75%, ±1.0%, ±1.5%, ±2.0%
　　Down-Spread Modulation Depths: –0.5%, –1%, –1.5%, –2.0%, –3.0%, –4.0%

　　3. Deep Integration: Empowering Three Core Scenarios in Smart Diagnostics and Therapy

　　1. High-End Imaging Equipment: Eliminating "Image Noise"
　　In devices such as endoscopes and ultrasound diagnostic systems, high-frequency circuits are densely packed. The YSO171PS spread-spectrum oscillator from YXC Technology suppresses high-frequency EMI radiation, ensuring analog signal acquisition remains interference-free, thereby fundamentally guaranteeing image clarity and contrast to help clinicians accurately identify lesions.
　　2. Precision Diagnostic Instruments: Enhancing "Signal-to-Noise Ratio"
　　Biochemical analyzers and hemoglobin testers are extremely sensitive to weak signals. By smoothing out energy peaks, spread-spectrum oscillators effectively improve the signal-to-noise ratio of minute current signals, ensuring test data maintains high repeatability and accuracy even in the complex electromagnetic environments of hospitals.
　　3. Portable Mobile Healthcare: Balancing "Miniaturization and Low Power Consumption"
　　For mobile ECG monitors and smart blood pressure monitors, the YSO171PS series offers ultra-compact packaging and low power consumption. Within constrained spaces, it eliminates the need for costly additional shielding cans or complex EMI suppression circuitry.
