HCI Hangjing: Domestic Alternative CVHD-950* Ultra-Low Phase Noise VCXO 100MHz

   I. Key Product Highlights

　　
　　Ultra-low phase noise: Delivers an exceptionally clean clock signal, with a typical value of -164 dBc/Hz @ 100 kHz.
　　
　　Extremely low jitter: RMS phase jitter as low as 40 fs, ensuring data transmission integrity.
　　
　　High frequency stability: Stability up to ±20 ppm, capable of handling demanding environmental conditions.
　　

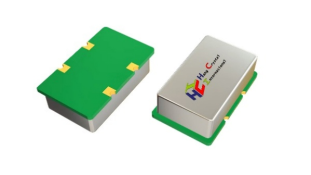

　　Compact design: Features a 9×14×2.8 mm surface-mount package, saving valuable PCB space.
　　
　　Domestically produced: Fully compatible replacement for Crystek CVHD-950* series products.
　　

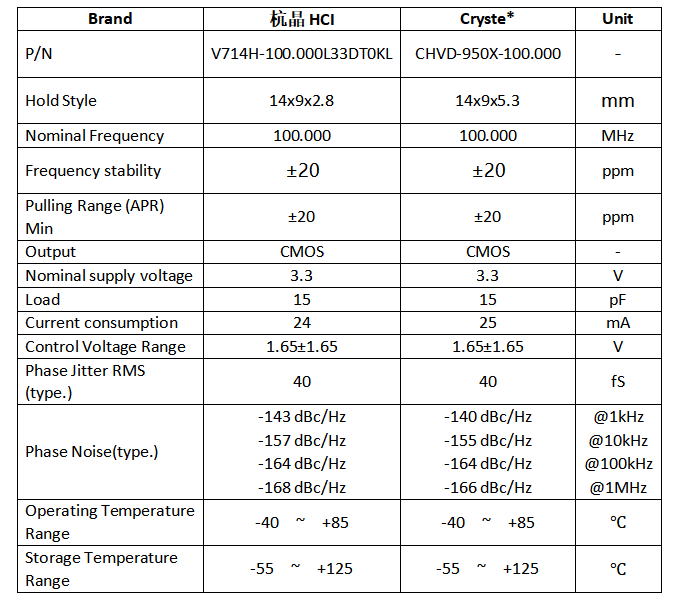

   II. Performance Data

　　

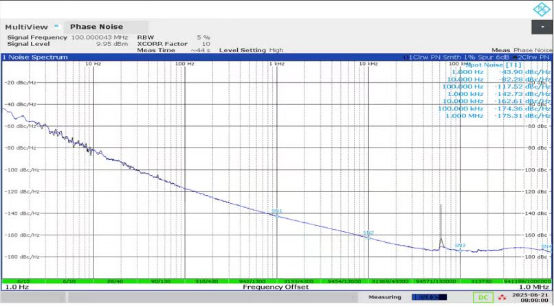

　　Phase Noise Data:

　　

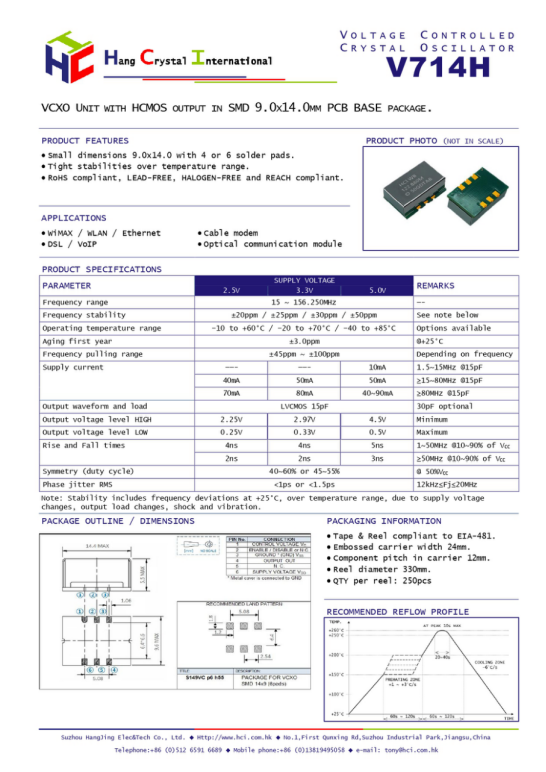

　　Series Datasheet

　　

   III. Primary Application Areas

　　
　　Telecommunications / Data Communications: Network switches/routers, clock synchronization and recovery
　　
　　Data Centers: Servers and storage arrays, clock cleaning and recovery
　　
　　Professional Broadcasting: Video production switchers and frame synchronizers, eliminating screen tearing
　　
　　Test & Measurement: High-end oscilloscopes and signal generators, serving as a core reference source
　　
　　Military & Aerospace: Communication and radar systems, used for frequency synthesis and modulation
　　

　IV. If You Are Seeking a Solution for the Following Requirements:

　　
　　Precision network clock synchronization
　　
　　Recovering a low-jitter, high-stability clock from high-speed serial data streams
　　
　　Domestic sourcing requirements
　　
　　The ultra-low-jitter V714H-100.000L33DT0KL is your ideal choice.
