Cheng Xingguang Industrial Indicator Light Explanation

　　As smart manufacturing, industrial internet, and new energy vehicles become key terms in industrial upgrading, people often focus on "core components" such as chips, sensors, and algorithms, while easily overlooking a seemingly insignificant yet omnipresent component—the status indicator light.
　　
　　The RUN/ERR indicator on a PLC control cabinet, a warning light on an automotive dashboard, or a power indicator bead on medical equipment—these components don’t perform computations or execute controls. Yet every blink serves as the “first dialogue” between machine and human. In industrial-grade scenarios, the failure of a single LED can lead to misjudgment, unexpected downtime, or even safety incidents. This is why an increasing number of equipment manufacturers are reevaluating: indicator lights were never just about “lighting up.”
　　
　　XINGLIGHT Optoelectronics has specialized in LED packaging for over 13 years and now offers a full series of industrial-grade SMD indicator LEDs.
　　

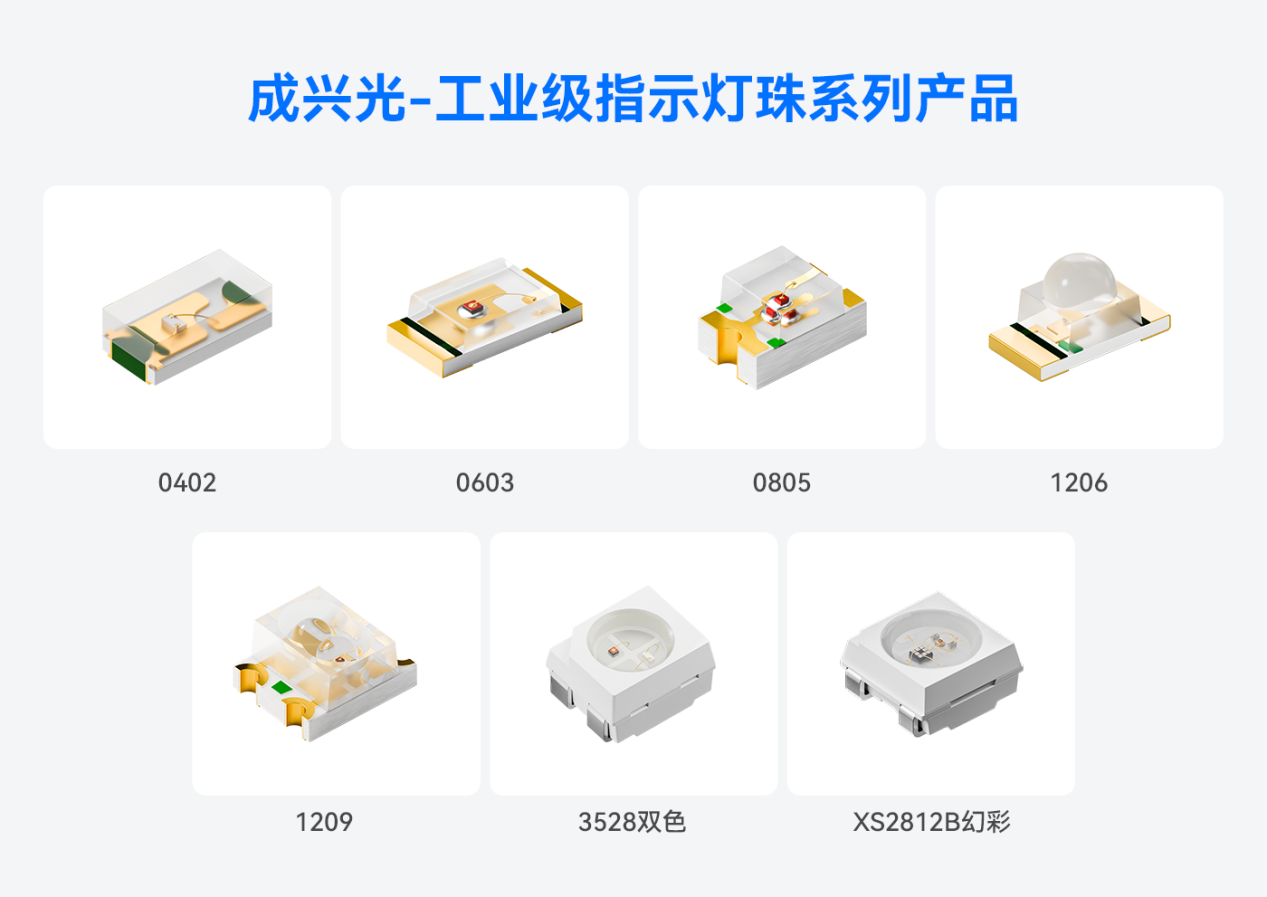

　　Covering package sizes including 0402/0603/0805/1206/1209/3528 dual-color and built-in XS2812B RGB addressable packages, with 47 models ranging from ultra-miniature to spotlight types, single-color to RGB addressable, and standard to high-brightness gold-plated versions—providing reliable status indication solutions for industrial manufacturing, automotive electronics, medical devices, smart home applications, and more.
　　

　　Static Single-Color / Dual-Color Industrial Indicator LEDs: Essential Solutions for Basic Equipment Status Indication

　　

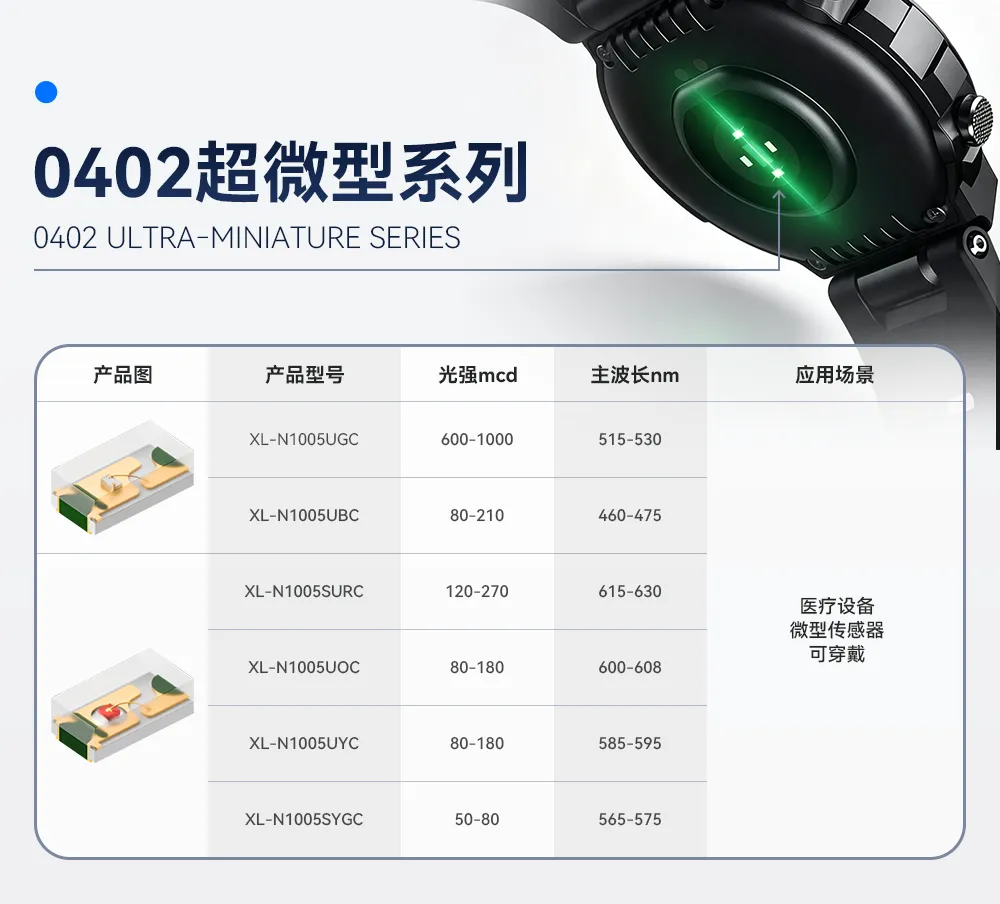

　　【1】0402 Ultra-Miniature Series – Ideal for Extreme Space Constraints
　　
　　With a compact package size of only 1.0×0.5×0.4mm, this is currently the smallest industrial-grade indicator LED series available. Despite its tiny footprint, it delivers uncompromised performance: typical red luminous intensity of 120–270 mcd, forward current of 25 mA, maximum power dissipation of 75 mW, and a wide 120° viewing angle.
　　
　　The entire series features gold-plated technology and achieves MSL Level 3 moisture sensitivity rating, ensuring compatibility with automated SMT placement and reflow soldering processes. Suitable for ultra-high-density PCBs, wearable medical devices, miniature sensor modules, and other space-constrained applications.
　　

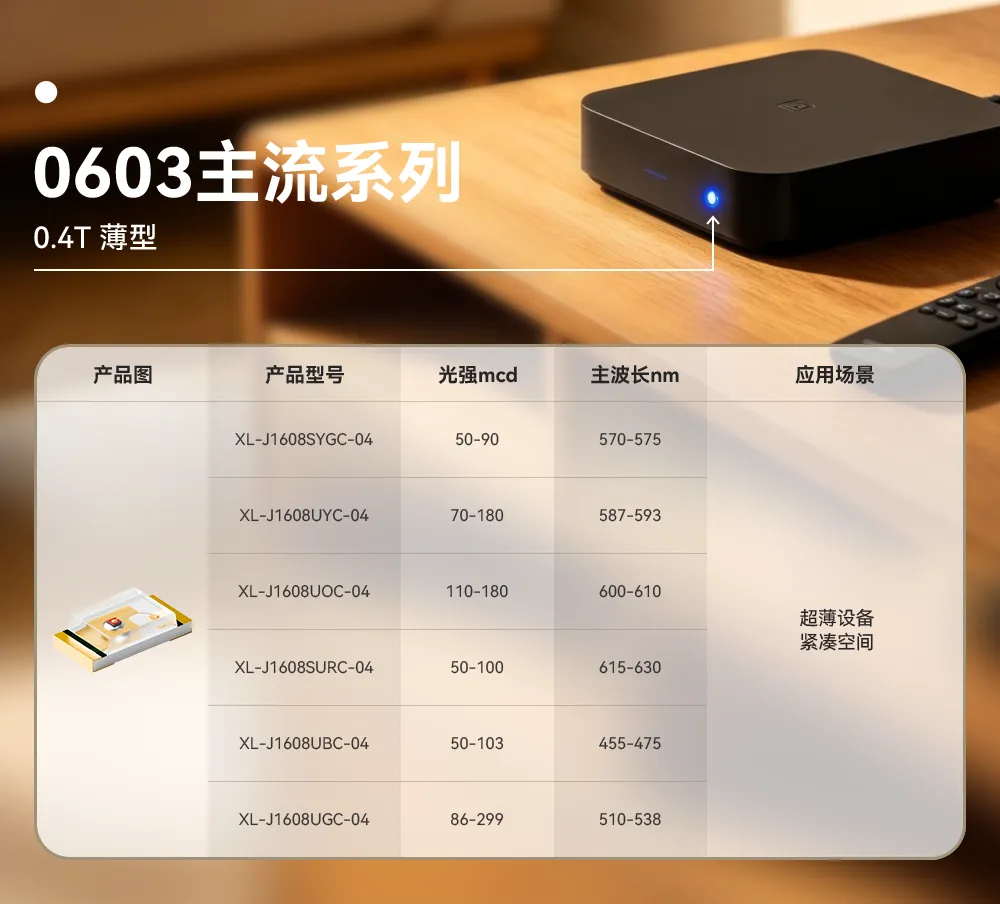

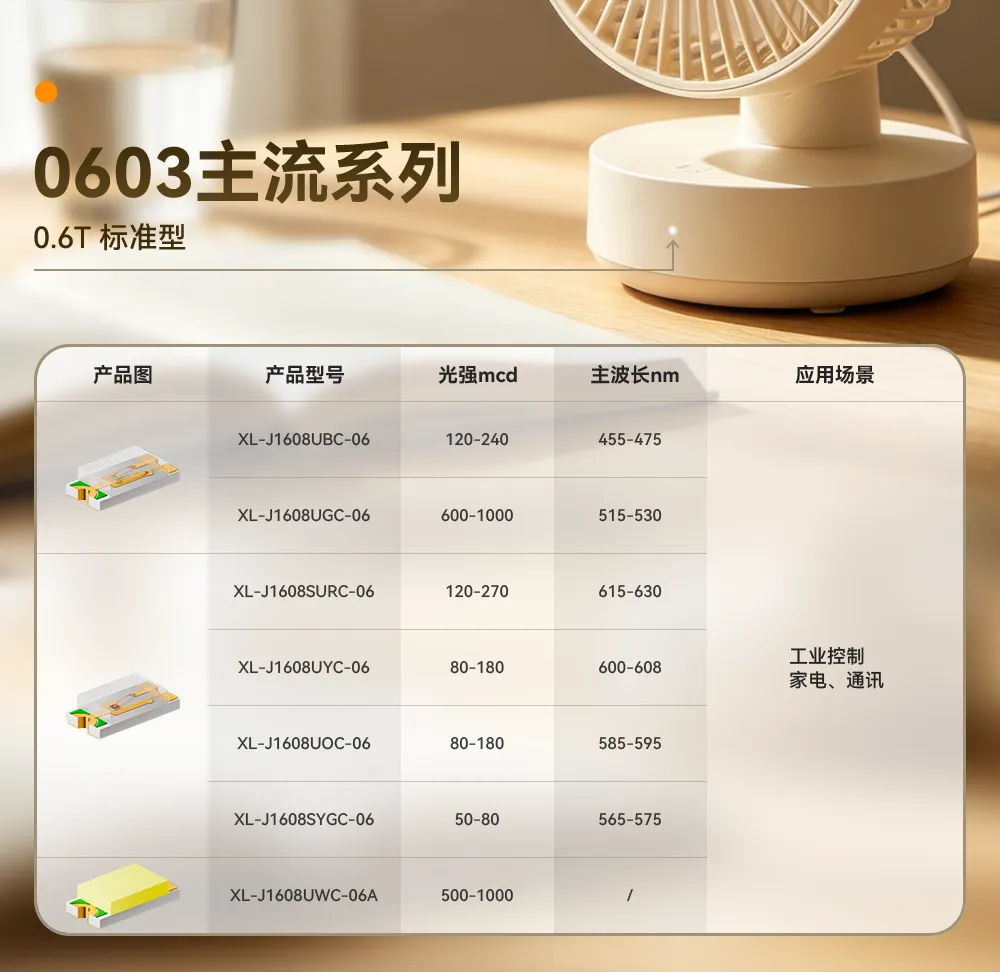

　　【2】0603 Mainstream Series – The Golden Balance Between Cost-Effectiveness and Performance
　　
　　The standard 0603 package (1.6×0.8 mm) is the most widely used specification in industrial control applications. XINGLIGHT offers both 0.4T (thin) and 0.6T (standard thickness) variants—0.4T suits ultra-thin devices and tight spaces, while 0.6T is ideal for general-purpose industrial boards.
　　
　　Available in seven colors: red, standard green, yellow, orange, blue, emerald green, and white. Gold-plated packaging ensures long-term reliability. For example, the white XL-J1608UWC-06A uses yellow diffused epoxy with a luminous intensity of 500–1000 mcd and a color temperature of approximately 10,000K—its cool white light offers strong penetration, making it especially suitable for power status and operational indicators.
　　

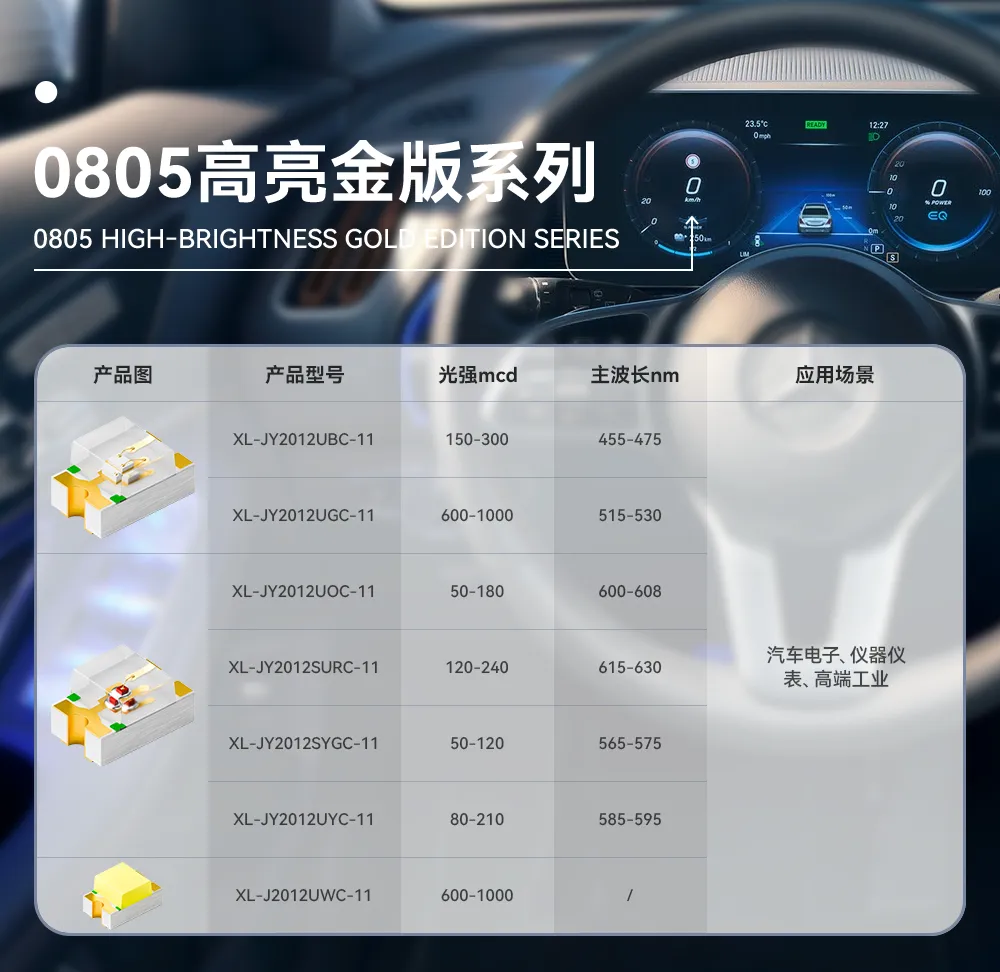

　　【3】0805 High-Brightness Gold-Plated Series – Advanced Choice for High Brightness and Reliability
　　
　　The 0805 package measures 2.0×1.2×1.1mm. Its 1.1mm thickness combined with gold/silver-plated leadframes enhances thermal performance and brightness. Typical red luminous intensity reaches 120–240 mcd, while the high-brightness white versions (CWZ/KWL) achieve 600–1000 mcd across a 6000K pure white spectrum.
　　
　　This series is particularly suited for industrial panels, instrumentation, and automotive center consoles where high visual clarity is required. The gold-plated leadframe not only improves heat dissipation but also enhances resistance to sulfidation, preventing silver epoxy oxidation and subsequent lumen depreciation in harsh industrial environments.
　　

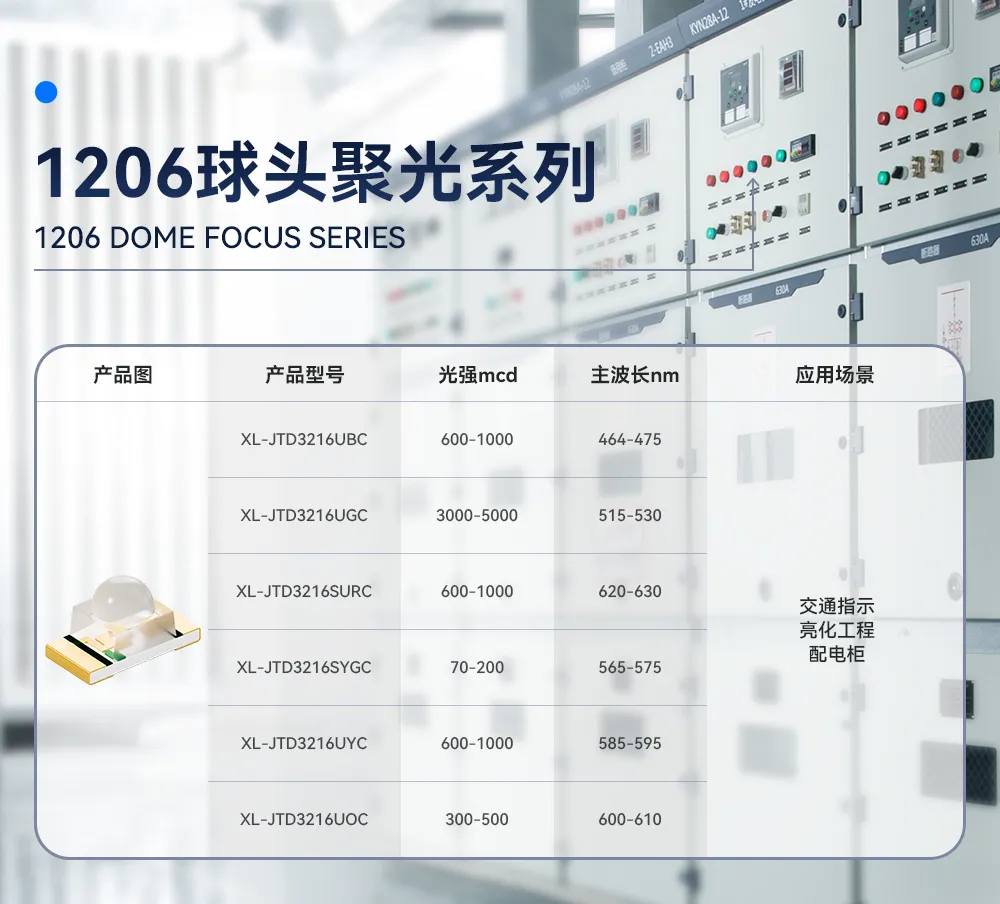

　　【4】1206 Dome Lens Spotlight Series – Focused Beam Solution for Long-Distance Indication
　　
　　Unlike conventional SMD LEDs, this dome lens series uses a 3.2×1.6×1.85mm package that narrows the viewing angle from 120° to 35°, creating a focused beam. Under the same 20mA drive current, red luminous intensity reaches 600–1000 mcd—3 to 5 times brighter than standard SMD LEDs.
　　
　　The focused design provides concentrated, directional light, ideal for long-distance visibility applications such as status indicators on distribution cabinets, outdoor traffic signals, urban lighting projects, and large equipment panels. Even under bright ambient light, the LED status remains clearly visible.
　　

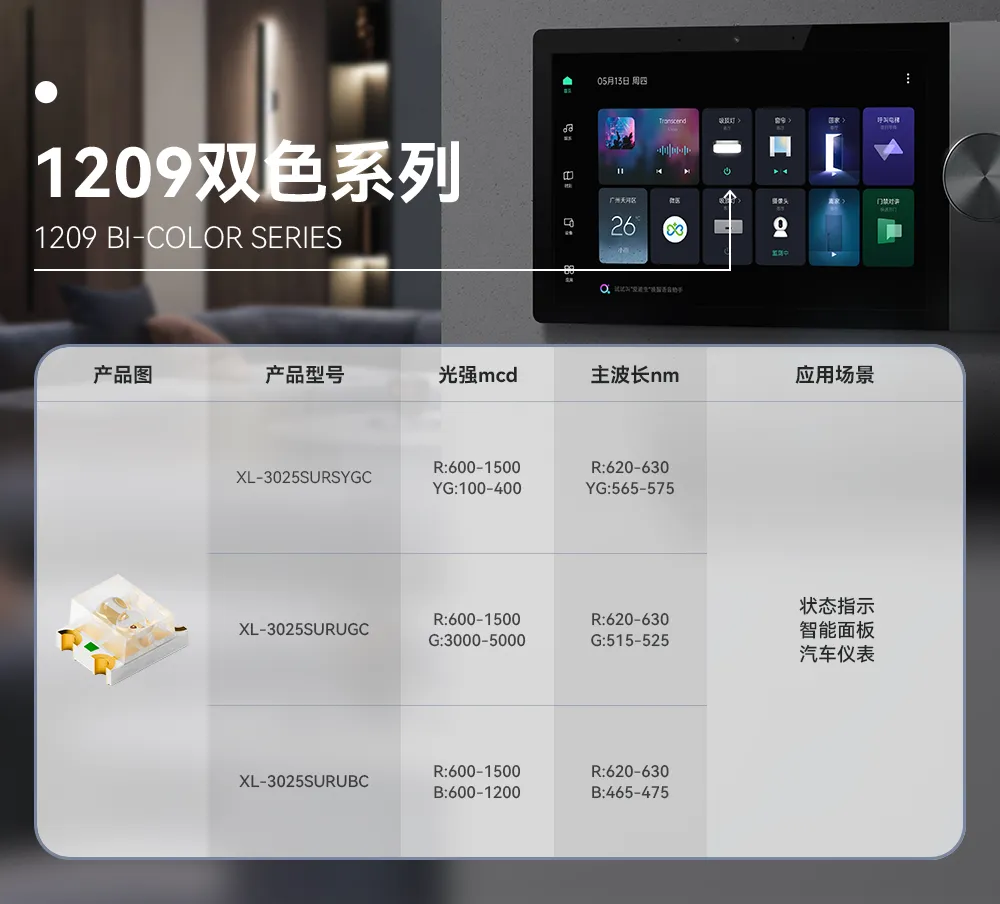

　　【5】1209 Dual-Color Series – Two States in One LED
　　
　　Packaged in 3.0×2.5×1.5mm with two independent chips inside, enabling dual-color emission through separate driving. A 60° viewing angle balances brightness and visibility. Available in red/green and red/blue combinations, a single LED can indicate binary states like “normal/alert,” “running/fault,” or “on/off,” saving PCB space and I/O resources.
　　
　　Dual-color LEDs are widely used in industrial controls, smart home panels, automotive dashboards, and appliance indicators—delivering rich status information with minimal component count.
　　

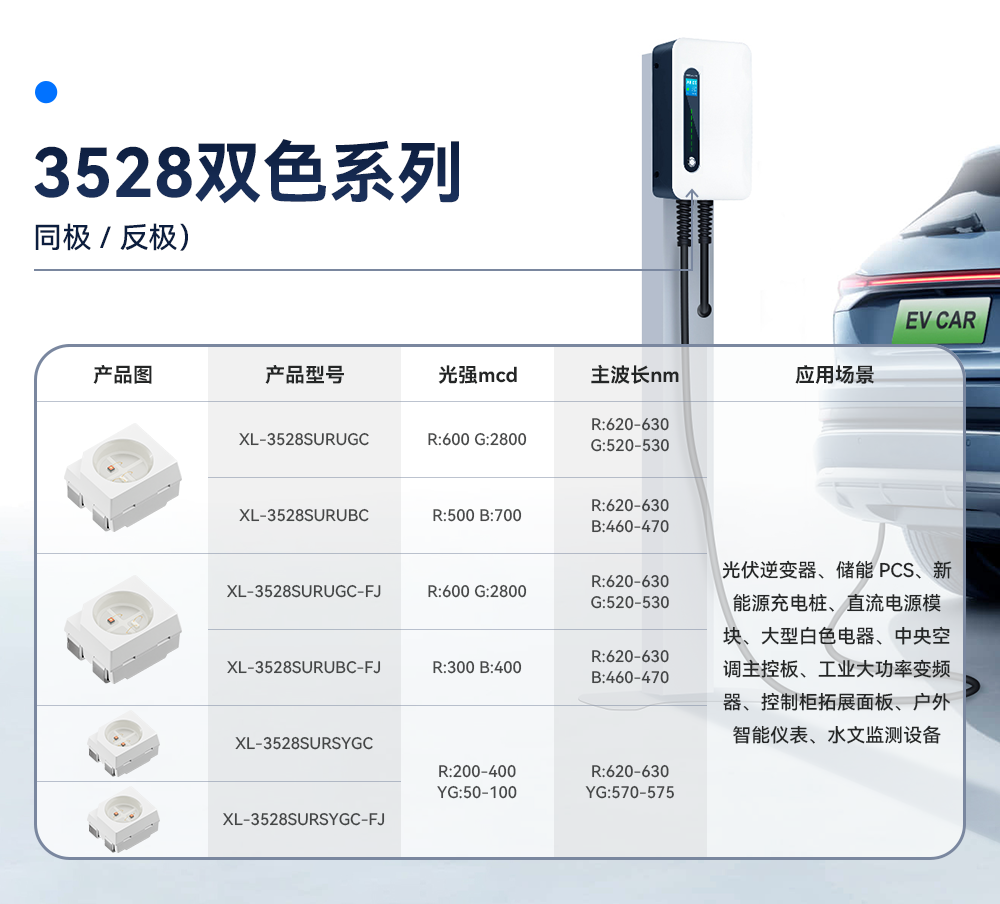

　　【6】3528 Dual-Color Series (Common-Anode / Common-Cathode Versions)
　　
　　Standard 3.5×2.8×1.9mm package with 1.9T thickness, transparent epoxy resin, and two fully independent LED chips with dual-channel electrical isolation—enabling individual or mixed-color operation without interference. A 120° wide viewing angle ensures balanced indoor/outdoor medium-range visibility—neither overly glaring nor hard to see under strong ambient light.
　　
　　Fills the demand for dual-color indication in medium-to-large panels and multi-layer PCB equipment. Available in common-anode and -FJ common-cathode pin configurations, with mainstream color combinations including red/emerald green, red/standard green, and red/blue—all adhering to industrial-wide temperature range and 2000V ESD protection standards. Suitable for long-distance cabinet panels, photovoltaic inverters, and EV chargers. The common-cathode version specifically addresses trace-crossing short-circuit issues in multi-layer PCBs, making it the dedicated dual-color solution for high-power industrial control and outdoor monitoring equipment.
　　

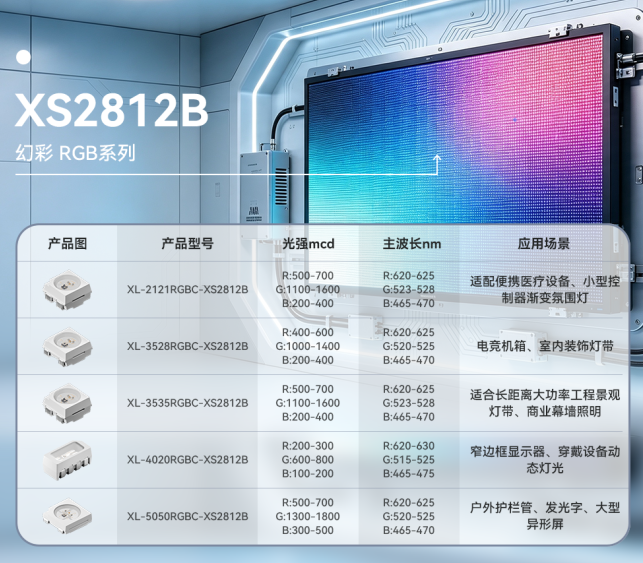

　　Built-in XS2812B RGB Addressable LEDs: Programmable Dynamic Full-Color Lighting Solutions

　　
　　For applications requiring gradient effects, flowing animations, or custom lighting—such as smart device ambient lighting, gaming LED strips, outdoor advertising, and creative shaped displays—XINGLIGHT offers an XS2812B-integrated RGB addressable product line. All models feature factory-matched XS2812B single-wire constant-current ICs, eliminating the need for external driver chips and simplifying MCU development. Five package sizes cover applications from miniature terminals to large-scale architectural lighting.
　　
　　Core hardware features across all RGB addressable LEDs:
　　
　　1. Constant-current control: Fixed 12mA per RGB channel, with on-chip current error <1.5% and inter-LED brightness variation <3%, ensuring uniform illumination and consistent color across the entire string;
　　
　　2. Communication performance: 800Kbps single-wire return-to-zero protocol with built-in signal reshaping and forwarding—supports stable cascading of up to 1024 LEDs at 30fps refresh rate; uses 24-bit GRB protocol (MSB first) with 80μs low-level reset for frame refresh;
　　
　　3. Power compatibility: Operates across a wide voltage range of 3.5–5.5V, with 100% stability above 4.5V; each LED should be paired with a 0.1μF decoupling capacitor and a 200–500Ω series resistor on the data line to prevent IC damage during hot-plugging;
　　
　　4. Environmental resilience: Operating temperature range of -40℃ to +85℃; passes 1000-hour room-temperature burn-in and 85℃/85% RH high-temperature high-humidity tests with zero failures; MSL Level 5 moisture resistance—unopened reels can be stored for 3 months; once opened, must be mounted within 24 hours, or baked at 60℃ for 24 hours if exceeded.
　　

　　Application-Based Selection Guide: Which Model Fits Your Needs?

　　【1】Medical Devices (Endoscopes, Pulse Oximeters, Patient Monitors)
　　
　　Recommended Models:
　　
　　0402 Series (XL-N1005 Full Color Range)
　　
　　0603 Thin Series (XL-J1608xxx-04)
　　

• 　　Medical devices demand extreme miniaturization, reliability, and biocompatibility. With extremely limited internal space in endoscopes and portable oximeters, the 0402 ultra-miniature package is the top choice. Fully RoHS-compliant and rated MSL Level 3, ensuring manufacturability in cleanroom environments.

　　

• 　　For multi-color status indication on device panels, the 0603 thin series (0.4T) offers sufficient brightness with only 0.4mm thickness—ideal for ultra-slim housing designs.

　　
　　【2】Automotive Electronics (Dashboards, Backlit Buttons, In-Vehicle Controllers)
　　
　　Recommended Models:
　　
　　0805 High-Brightness Gold-Plated Series (XL-JY2012 Series)
　　
　　1206 Dome Lens Series (XL-JTD3216 Series)
　　
　　Automotive electronics impose some of the strictest reliability requirements on LEDs:
　　

• 　　Wide temperature cycling, vibration/shock resistance, and long lifespan are non-negotiable. The 0805 gold-plated series uses gold-plated leadframes for superior anti-sulfidation performance and 1.1mm thickness for effective heat dissipation—ideal for continuously lit applications like dashboard backlighting and center console button indicators.

　　

• 　　For long-distance visible warning lights (e.g., malfunction indicators, seatbelt alerts), the 1206 dome lens series delivers 35° narrow viewing angle and 600–1000 mcd high brightness—ensuring clear visibility even under direct sunlight in the cockpit.

　　
　　【3】Industrial Control (PLCs, Servo Drives, Industrial Power Supplies)
　　
　　Recommended Models:
　　
　　0603 Standard Series, 0805 Gold-Plated Series, 1209 Dual-Color Series, 3528 Dual-Color Series
　　
　　Control cabinets are among the most LED-dense industrial environments:
　　

• 　　Power, run, fault, communication—dozens of indicators may populate a single board. The 0603 standard series offers the best cost-performance balance, with full seven-color coverage and gold-plated reliability.

　　

• 　　For binary status indication (e.g., “run/alert”), dual-color LEDs (red/green or red/blue) replace two single-color LEDs—saving PCB space and driver channels.

　　

• 　　Long-distance cabinet panels, PV inverters, and EV chargers can utilize the 3528 dual-color industrial series.

　　
　　【4】Smart Home & White Goods (Air Conditioners, Routers, Control Panels)
　　
　　Recommended Models:
　　
　　0603 Series (XL-J1608 Full Color Range)
　　
　　Dual-Color Series (XL-3025 Series)
　　

• 　　Smart home and appliance products require indicators that are “visible but not glaring.” The 0603 series offers 120° wide viewing angle and moderate brightness—perfect for routers, set-top boxes, AC panels, and washing machine controls.

　　

• 　　For smart devices needing state toggling (e.g., “standby/active,” “online/offline”), dual-color LEDs provide intuitive user feedback—one LED, two colors, instant understanding.

　　
　　【5】Telecom Equipment (Base Stations, Switches, Servers)
　　
　　Recommended Models: 0603 Series, 0805 High-Brightness Gold-Plated Series, XS2812B RGB Addressable Series
　　

• 　　Telecom equipment operates 24/7, demanding exceptional long-term LED reliability. The 0805 gold-plated series offers excellent thermal performance and low lumen depreciation—ideal for continuously lit power and link-status indicators.

　　

• 　　High-density boards (e.g., switch line cards) host numerous LEDs; the 0603 series strikes the optimal balance between size and brightness—making it the telecom industry standard.

　　

• 　　For cabinet maintenance interaction or server status flow indication, XS2812B RGB addressable LEDs enable dynamic multi-color coding for load, alert, and offline states—enhancing long-distance recognition in data centers. Full-series wide-temperature tolerance suits both climate-controlled server rooms and outdoor base stations with large temperature swings.

　　
　　【6】Traffic Signaling & Urban Lighting (Guardrail Tubes, Landscaping, Traffic Points)
　　
　　Recommended Models: 1206 Dome Lens Series (XL-JTD3216 Full Color Range)
　　

• 　　Traffic signals, outdoor signage, and urban lighting demand maximum LED brightness and long-distance visibility. The dome lens series concentrates light into a 35° narrow beam with 600–1000 mcd intensity—ensuring clear long-range readability. Available in six colors: red, yellow, green, blue, orange, and emerald green—to meet diverse traffic and decorative lighting needs.

　　
　　Industrial-Grade Reliability: Every LED Rigorously Validated
　　
　　1. Wide-Temperature Operation: Full series operates reliably from -40℃ to +85℃, with storage temperature range equally covering -40℃ to +85℃—ensuring stable performance in northern outdoor base stations or high-temperature factory floors.
　　
　　2. High-Level ESD Protection: Full series withstands 2000V (HBM human body model), effectively resisting electrostatic discharge and voltage surges common in industrial settings—reducing risks of damage during production and use.
　　
　　3. MSL Level 3 Moisture Sensitivity: MSL Level 3 rating allows up to 168 hours (7 days) of floor exposure after opening without re-baking—greatly enhancing SMT line efficiency and reducing popcorning risks during reflow.
　　
　　4. RoHS Compliance & Eco-Friendly Processes: Entire product line complies with RoHS directives—lead-free, mercury-free, cadmium-free—meeting environmental regulations in EU, China, and global markets, facilitating smooth certification.
　　
　　5. SMT Automation Compatibility: Packaged per EIA standards, compatible with automated SMT placement and infrared reflow soldering (260℃/6s)—ensuring seamless integration with high-speed pick-and-place machines and mainstream reflow processes for mass production.
　　

　　XINGLIGHT: Forging Reliable “Light Signals” for Industry 4.0

　　
　　In the wave of Industry 4.0, every component is a brick in the edifice of smart manufacturing. Though small, indicator LEDs carry critical responsibilities: conveying equipment status, issuing safety alerts, and enabling human-machine interaction. A truly “reliable” indicator LED is the last line of defense for equipment dependability.
　　
　　With over 13 years of expertise in LED packaging, XINGLIGHT Optoelectronics builds every LED to industrial-grade standards. From single-color to RGB addressable, standard to high-brightness—47 models cover all industrial indication scenarios, providing China’s manufacturing sector with dependable “light signal” support.
